ANGADA

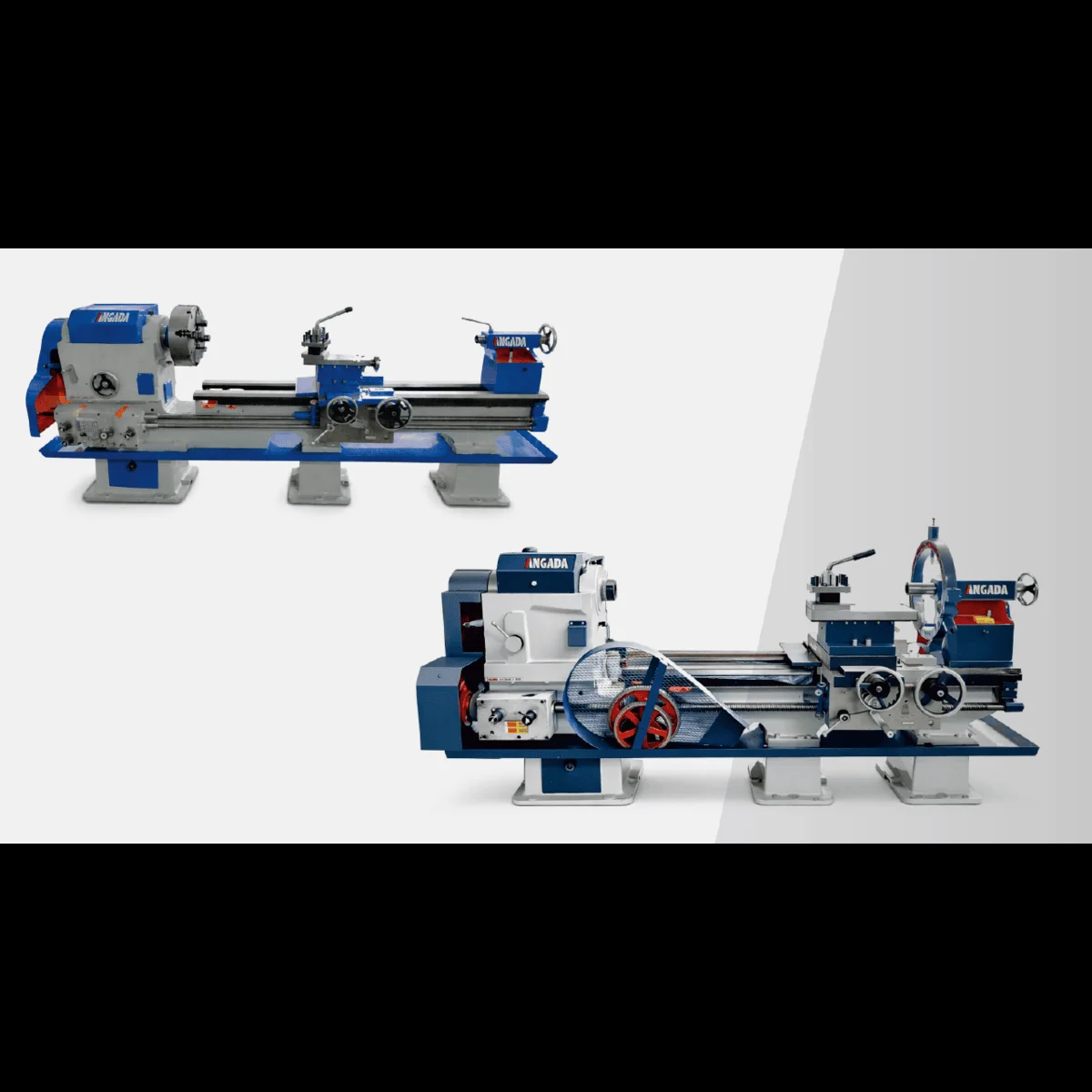

Angada Heavy Duty Lathe Machine 5 feet 6 inch - 508mm Swing - 3HP
₹1,50,000 - ₹2,50,000/ PIECE
Min. Order
1 PIECE
Availability
Only 10 left
Key Details
- HSN Code
- 84589990
- Country of Origin
- India
- Category
- Machine Tools & Metal Cutting
- Sold By
- ALPHA MACHINERIES
- Customizable
- No
ALPHA MACHINERIES
Manufacturer
RAJKOT, GUJARAT
5 products from this seller
Description
This heavy duty lathe machine is designed for high-performance turning operations in engineering workshops. With a 508 mm swing and 5 ft 6 in distance between centers, it can handle large and long components with stability.
Powered by a 3 HP motor, it offers strong torque and smooth cutting for continuous machining. The rigid bed and precise feed system ensure consistent accuracy for turning, facing, threading, and boring operations.
Technical Specifications
- Length of bed
- 5'.6"(1675mm)
- Width of bed
- 324mm
- Induction Harden bed ways
- yes
- Height of center
- 12"(304mm)
- Spindle bor
- 52mm
- Admit bet.center
- 508mm
- Swing over bed
- 508mm
- Swing over cross slide
- 355mm
- Swing in gap
- 825mm
- Leadscrew dia/thread
- 32mm/4TPI
- Tailstock Ram dia/tapper
- 50mm/MT-4
- Tailstock travel
- 175mm
- No.of Spindle speed
- 8/30 TO 495 RPM
- Approx weight
- 1250kg
- Power Required
- 3HP
