Precision Point

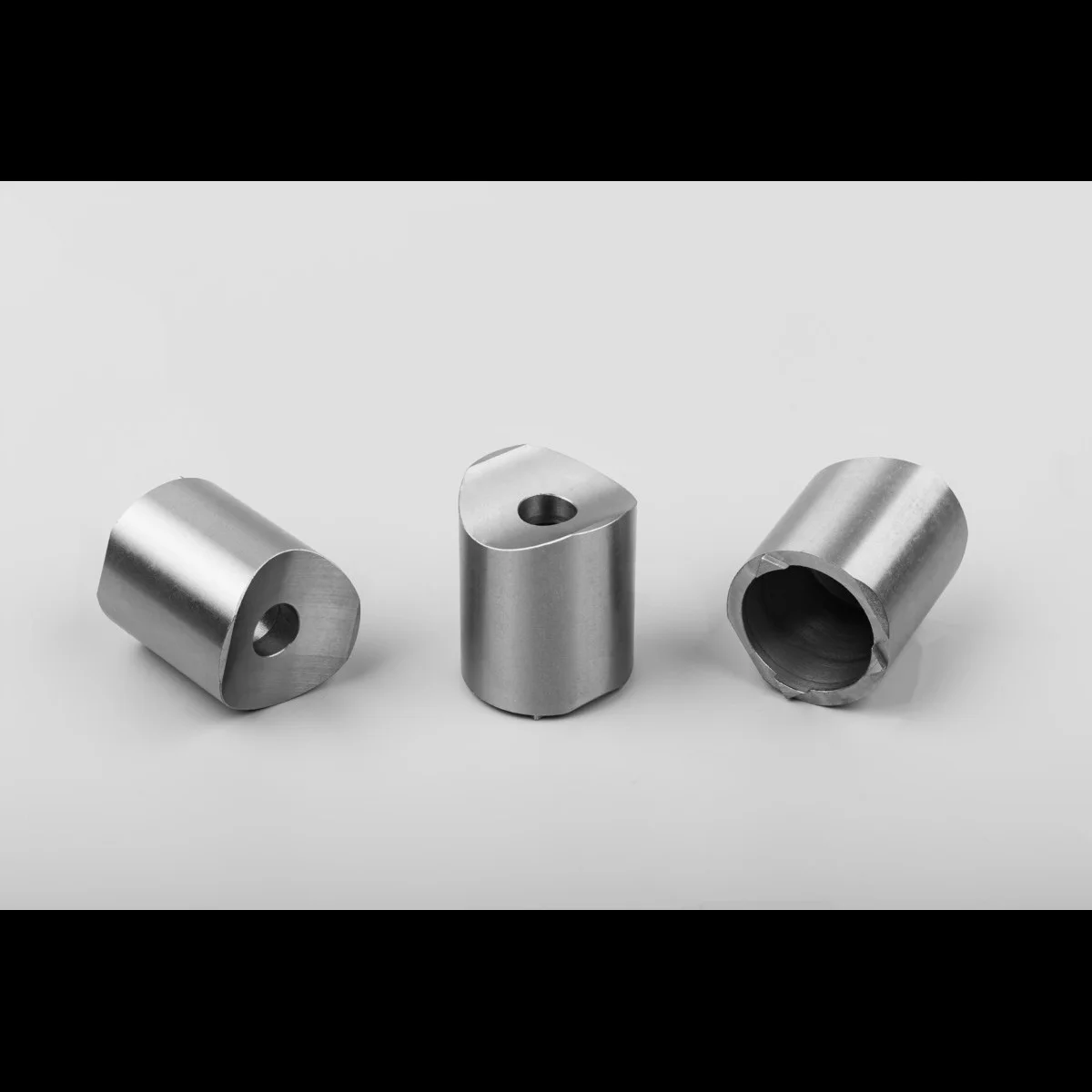

Custom CNC Turned Bushings and Sleeves
₹150/ PIECE
Min. Order
10 PIECE
Availability
In Stock
Key Details
- HSN Code
- 84839000
- Country of Origin
- India
- Category
- Industrial Bearings
- Sold By
- Precision Point Engineering Pvt. Ltd
- Customizable
- No
Precision Point Engineering Pvt. Ltd
Manufacturer·Est. 2017
Thane, Maharashtra
Description
Precision CNC turned bushings and sleeves manufactured to customer drawings and specifications. Available in SS316, SS304, MS EN8, and Aluminium 6061-T6. Every batch ships with a dimensional inspection report. MTR available on request before production starts. Suitable for robotics, industrial machinery, food processing equipment, and OEM assemblies. Tolerances held to 0.02mm. Rush orders accepted up to 500 pieces in 2 to 3 working days.
Applications
Robotics joint assemblies, conveyor systems, pump shafts, gearbox components, food processing machinery, hydraulic systems, OEM sub-assemblies
Technical Specifications
- Material Grades
- SS316, SS304, MS EN8, Aluminium 6061-T6, Brass C360
- OD Range
- 10mm to 150mm
- ID Range
- 5mm to 130mm
- Length Range
- 5mm to 300mm
- Wall Thickness Min
- 1.5mm
- Tolerance Standard
- 0.05mm
- Tolerance Precision
- 0.02mm
- Surface Finish Ra
- 0.8 to 3.2 micron
- Thread Options
- Internal and External, Metric and BSP
- Secondary Processes
- Drilling, tapping, knurling, chamfering, grooving
- Surface Treatment
- Passivation for SS, Anodizing for Al, Black oxide for MS
- MTR Availability
- Yes, on request before production starts
Policies
Shipping Policy
Pan-India via Blue Dart or Delhivery. Standard dispatch 5 to 7 working days. Rush dispatch 2 to 3 working days up to 500 pieces. Packing with part-level tagging.
Return Policy
Returns accepted within 7 days for dimensional non-conformance with inspection report. Custom orders non-returnable unless manufacturing defect confirmed.
