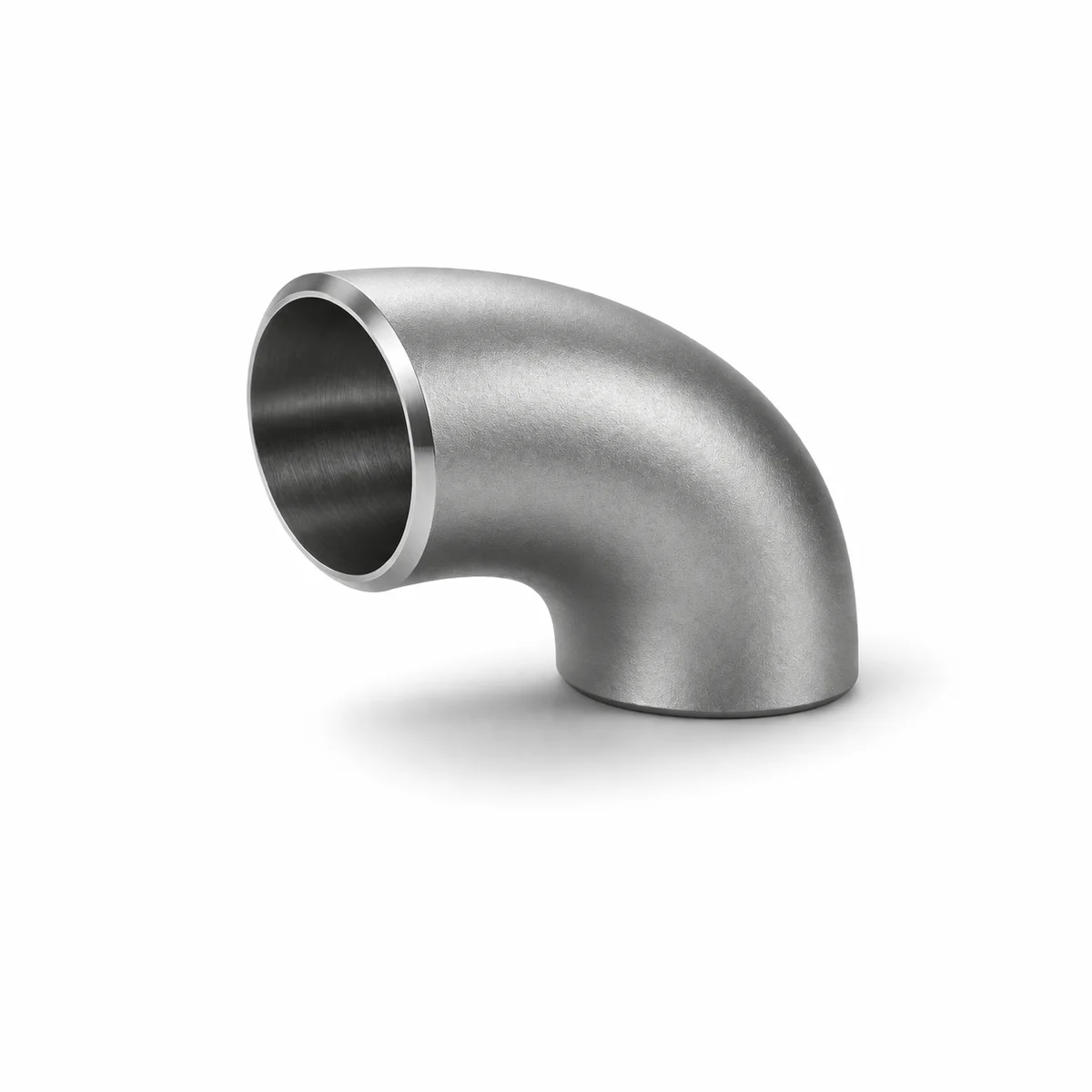

90° Buttweld Elbow

₹500/ PIECE

Min. Order

1 PIECE

Availability

In Stock

Key Details

HSN Code: 730793
Country of Origin: India
Category: Pipe Fittings & Connectors
Sold By: RAJENDRA INDUSTRIAL CORPORATION
Customizable: No

RAJENDRA INDUSTRIAL CORPORATION

Manufacturer·Est. 2017

Mumbai, Maharashtra

10 products from this seller

View Profile

Description

90° Buttweld Elbow for changing flow direction by 90 degrees in piping systems. Available in Long Radius (1.5D), Short Radius (1D), and Extra Long Radius (3D/5D) configurations. LR elbows used when space permits and smooth flow is critical. SR elbows used in tight spaces where clearance is limited. Butt-weld connection provides permanent leak-proof joints with continuous metal structure. Smooth inner surface reduces pressure loss, turbulence, and minimizes corrosion/erosion. Manufactured to ANSI B16.9 and B16.28 standards.

Technical Specifications

Angle: 90°
Radius Types: Long Radius LR (1.5D), Short Radius SR (1D), Extra Long 3D, 5D
Size Range: 1/2" to 48" NB
Schedule: SCH 5, 10, 20, 40, 60, 80, 100, 120, 160, XXS
Standards: ANSI B16.9, ANSI B16.28, MSS-SP-43
Material - SS: ASTM A403 WP 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Material - CS: ASTM A234 WPB, WPBW, WPHY 42, 46, 52, 60, 65, 70
Material - LTCS: ASTM A420 WPL3, WPL6
Material - Alloy: ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Manufacturing: Seamless, Welded
End Preparation: Bevelled for welding
Testing: Hydro Test, PMI, Radiography on request
Certification: EN 10204 3.1 MTR
