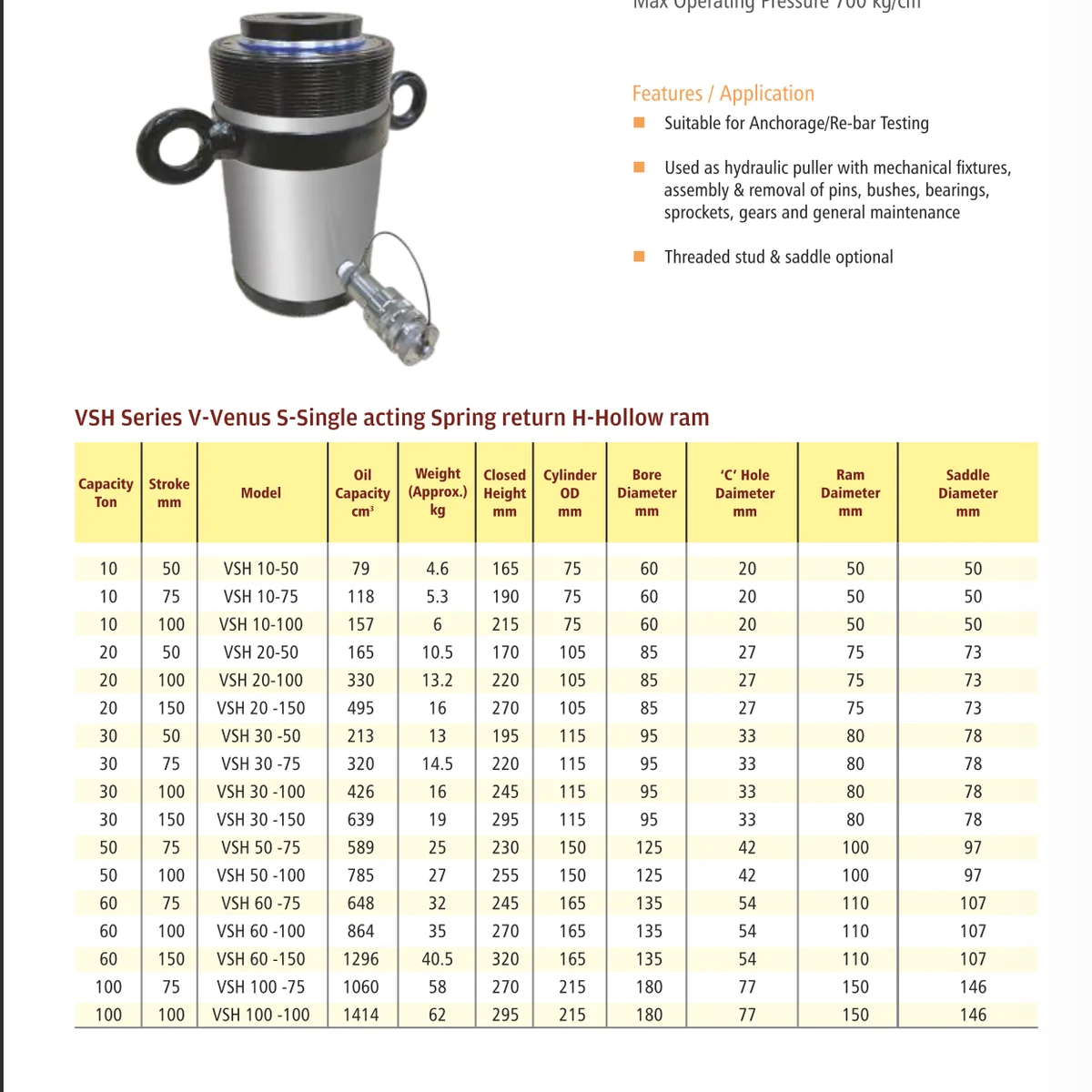

Hollow Ram Hydraulic Cylinders
About this product
Hollow ram hydraulic cylinders with center hole through the piston rod for tensioning, pull-through, and anchor testing applications. Available in capacities from 10 to 200 tons with stroke lengths from 50mm to 150mm. The through-hole design allows cables, rods, rebar, or tie bolts to pass through the cylinder center — enabling tensioning operations not possible with solid-ram cylinders. Available in single acting (spring return) and double acting (oil return) configurations. Features include 700 kg/cm² maximum operating pressure, gland nut designed to withstand dead-end loads, and optional threaded stud and saddle attachments. Used extensively in civil construction for anchorage and rebar testing, and in maintenance for bearing bush removal, cylinder liner extraction, and pulley removal with mechanical fixtures. Manufactured by Venus Hydraulics, Belagavi — ISO 9001:2015 certified.
Application
Used wherever a cable, rod, or fastener must pass through the cylinder during operation. Primary applications include anchorage testing and rebar tensioning at construction sites, pre-stressing operations for concrete structures, cable tensioning for bridges and post-tensioned slabs, and bar/cylinder/tube pulling operations in maintenance. Also used as hydraulic pullers with mechanical fixtures for removing pins, bushes, bearings, sprockets, gears, cylinder liners, and tube bundles from heat exchangers. Double acting variants suitable for applications requiring controlled retraction force.
Key details
| HSN Code | 84122100 |
| Country of Origin | India |
| Brand | Venus Hydraulics |
| Sold by | M/S. VENUS HYDRAULICS |
| Customizable | No |
| Unit | PIECE |
| Minimum order | 1 PIECE |
| Category | Pumps, Hydraulics & Fluid Control > Hydraulic Cylinders & Actuators > Industrial Hydraulic Cylinders |
Specifications
| Capacity Range | 10 to 200 Ton |
| Stroke Range | 50 to 150 mm |
| Action Types Available | Single Acting (Spring Return) and Double Acting (Oil Return) |
| Return Mechanism | Spring Assisted (VSH) or Oil Powered (VDH) |
| Maximum Operating Pressure | 700 kg/cm² |
| Center Hole Diameter Range | 20 to 80 mm |
| Ram Type | Hollow (Plain) |
| Body Material | Steel |
| Cylinder OD Range | 75 to 220 mm |
| Bore Diameter Range | 50 to 200 mm |
| Closed Height Range | 165 to 400 mm |
| Weight Range | 4.6 to 164 kg |
| Series Covered | VSH (Single Acting Spring Return), VDH (Double Acting Oil Return) |
| Special Features | Gland nut designed for dead-end load, threaded stud and saddle optional |
| Certification | ISO 9001:2015 |
