Hydraulic Cylinders - Double Acting
About this product
Double acting hydraulic cylinders with oil-powered return stroke for heavy-duty industrial lifting, pushing, and pulling applications. Available in capacities from 10 to 2000 tons with stroke lengths from 150mm to 300mm. Oil return mechanism provides full force control in both extend and retract directions — essential for applications requiring controlled lowering under load or push-pull operations. Features include 700 kg/cm² maximum operating pressure, safety pressure relief valve in return port to prevent over-pressurization, and optional spherical saddle for off-center load compensation. Threaded ram variants include safety lock nut for sustained load holding in vertical or horizontal orientation. Suitable for pile load testing, box pushing, ship lifting, hydraulic presses, and heavy structure manipulation. Manufactured by Venus Hydraulics, Belagavi — ISO 9001:2015 certified.
Application
Used in heavy industrial operations requiring controlled force in both directions. Common applications include pile load testing, hydraulic press operations, ship lifting and launching, box pushing, heavy machinery positioning, structural load testing, girder alignment, and any application where the load must be lowered under controlled hydraulic pressure rather than gravity. Spherical saddle variants protect the cylinder from damage when loads are off-center or angular. Threaded ram variants with lock nut allow sustained load holding over extended durations without continuous hydraulic pressure.
Key details
| HSN Code | 84122100 |
| Country of Origin | India |
| Brand | Venus Hydraulics |
| Sold by | M/S. VENUS HYDRAULICS |
| Customizable | No |
| Unit | PIECE |
| Minimum order | 1 PIECE |
| Category | Pumps, Hydraulics & Fluid Control > Hydraulic Cylinders & Actuators > Industrial Hydraulic Cylinders |
Specifications
| Capacity Range | 10 to 2000 Ton |
| Stroke Range | 150 to 300 mm |
| Action Type | Double Acting |
| Return Mechanism | Oil Powered (hydraulic retract) |
| Maximum Operating Pressure | 700 kg/cm² |
| Ram Type | Plain or Threaded with Safety Lock Nut (series dependent) |
| Saddle Type | Plain or Spherical (series dependent) |
| Body Material | Steel |
| Cylinder OD Range | 75 to 600 mm |
| Bore Diameter Range | 45 to 475 mm |
| Closed Height Range | 275 to 635 mm |
| Weight Range | 8 to 597 kg |

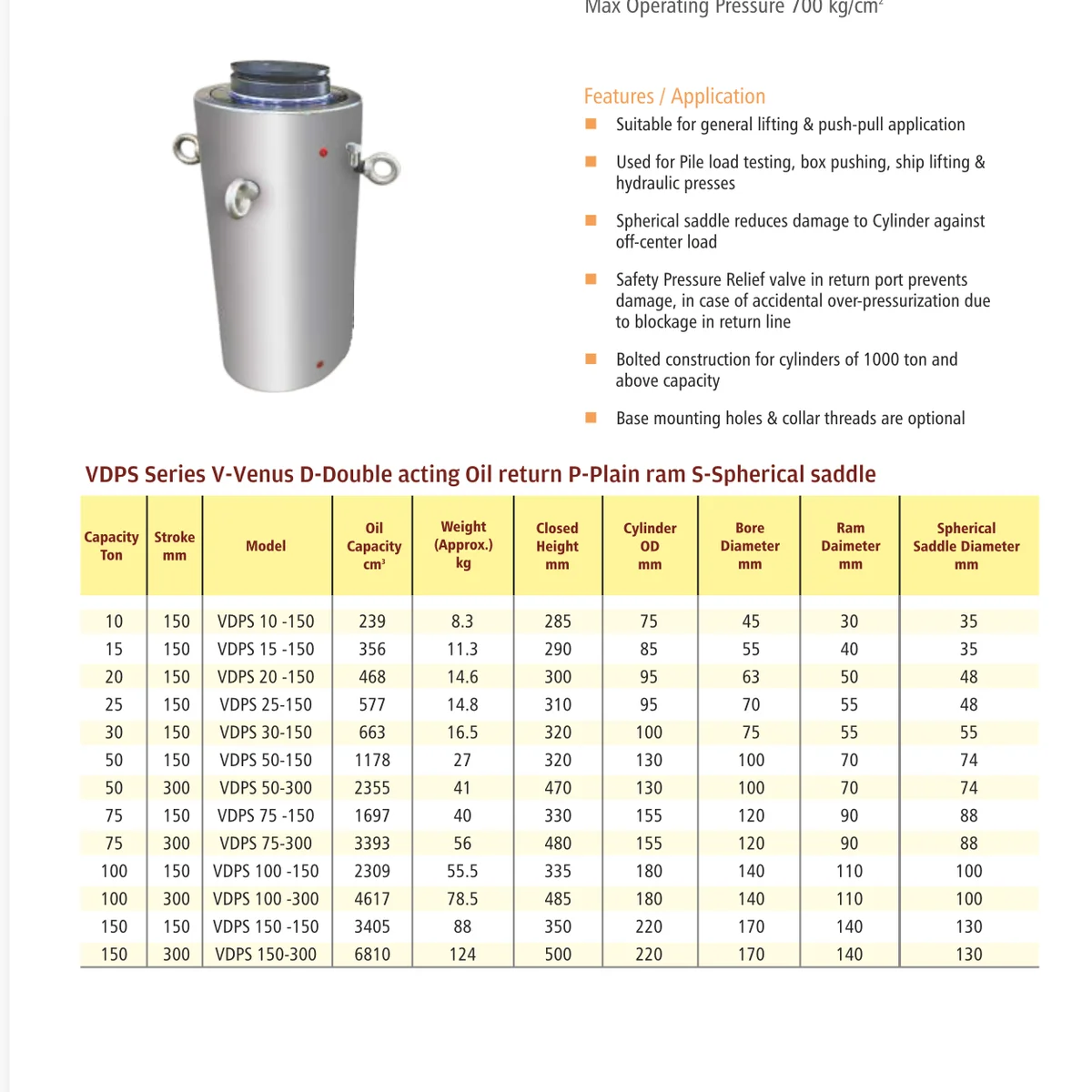

| Series Covered | VDP (Plain Saddle), VDPS (Spherical Saddle), VDT (Threaded Ram with Lock Nut) |
| Safety Features | Pressure relief valve in return port prevents damage from over-pressurization |
| Certification | ISO 9001:2015 |
