Hydraulic Cylinders - Single Acting Load Return
About this product
Single acting hydraulic cylinders with load-assisted return stroke, designed for confined spaces with extremely low clearance. Available in capacities from 10 to 1200 tons with stroke lengths from 10mm to 50mm. Pancake-style construction delivers high tonnage in minimal closed height — ideal for precision lifting, heavy machinery alignment, structural jacking, and shipyard operations where vertical space is limited. Features include 700 kg/cm² maximum operating pressure, stroke limit indicator, and optional spherical saddle for off-center load compensation. Threaded ram variants include safety lock nut for sustained load holding over extended durations. Manufactured by Venus Hydraulics, Belagavi — ISO 9001:2015 certified.
Application
Used in precision lifting operations where headroom is severely restricted. Common applications include heavy structure alignment, machinery installation in tight spaces, girder and segment alignment in bridge construction, ship propeller and taper seat removal, pulley and sprocket removal, and load testing in civil engineering laboratories. Spherical saddle variants compensate for angular misalignment and distribute off-center loads safely.
Key details
| HSN Code | 84122100 |
| Country of Origin | India |
| Brand | Venus Hydraulics |
| Sold by | M/S. VENUS HYDRAULICS |
| Customizable | No |
| Unit | PIECE |
| Minimum order | 1 PIECE |
| Category | Pumps, Hydraulics & Fluid Control > Hydraulic Cylinders & Actuators > Industrial Hydraulic Cylinders |
Specifications
| Capacity Range | 10 to 1200 Ton |
| Stroke Range | 10 to 50 mm |
| Action Type | Single Acting |
| Return Mechanism | Load Assisted (gravity or external load) |
| Maximum Operating Pressure | 700 kg/cm² |
| Ram Type | Plain or Threaded with Safety Lock Nut (series dependent) |
| Saddle Type | Plain or Spherical (series dependent) |
| Body Material | Steel |
| Cylinder OD Range | 80 to 600 mm |
| Bore Diameter Range | 45 to 475 mm |
| Closed Height Range | 30 to 280 mm |
| Weight Range | 1.2 to 597 kg |

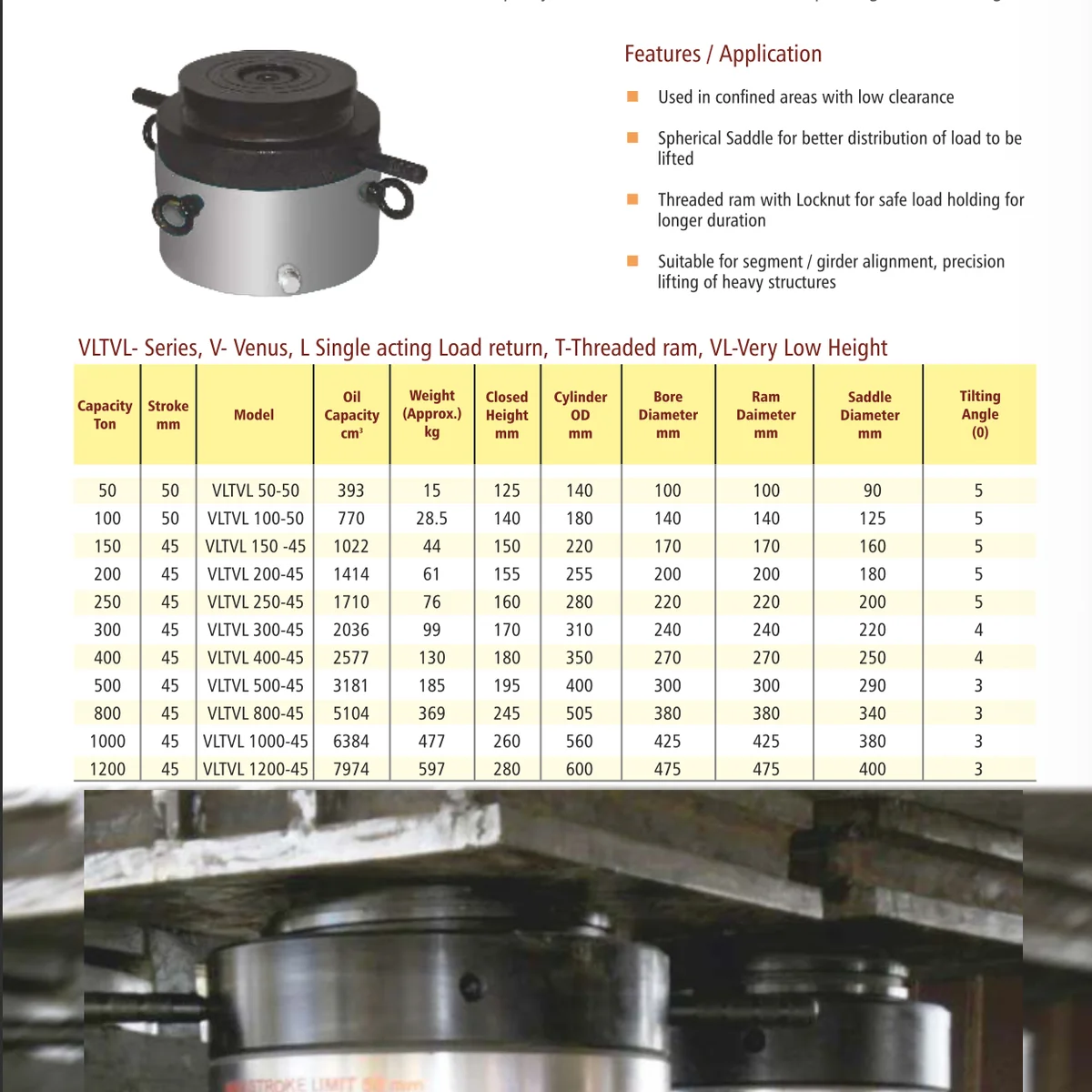

| Series Covered | VLPVL (Plain Ram), VLTVL (Threaded Ram with Spherical Saddle) |
| Special Features | Stroke limit indicator, tilting angle up to 5° (spherical saddle variants) |
| Certification | ISO 9001:2015 |
