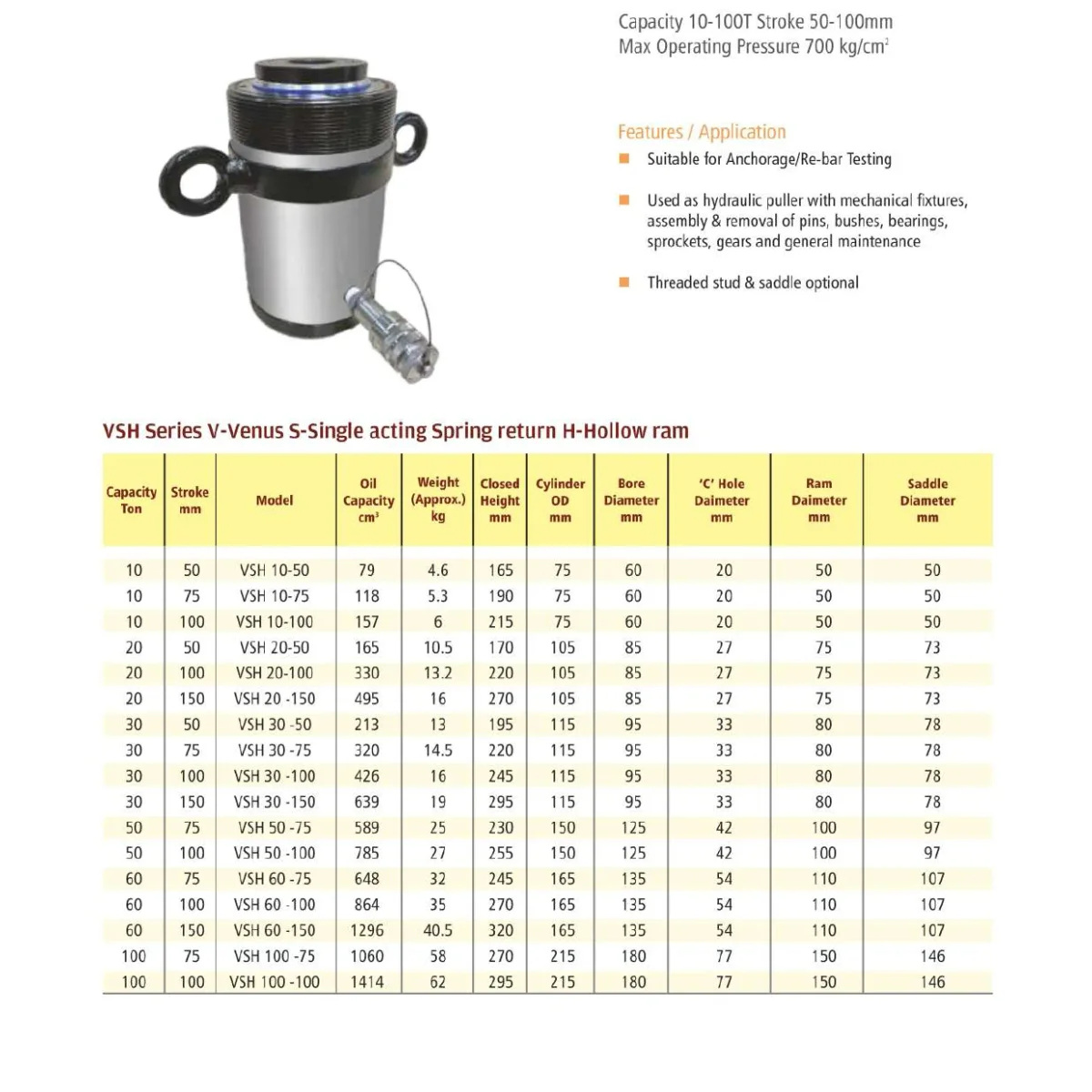

Hydraulic Cylinders - Single Acting Spring Return
About this product
Single acting hydraulic cylinders with spring-assisted return stroke for industrial lifting, pressing, and positioning applications. Available in capacities from 5 to 400 tons with stroke lengths ranging from 8mm to 300mm. Designed for maintenance work, heavy equipment lifting, machinery alignment, shipyard operations, and construction applications. Features include spring-assisted ram retraction for reliable return stroke without external oil supply, 700 kg/cm² maximum operating pressure, and optional base mounting holes and collar threads. Available in flat, low-height, and standard configurations to suit space-constrained and general-purpose applications. Manufactured by Venus Hydraulics, Belagavi — ISO 9001:2015 certified.
Application
Used across construction sites, fabrication shops, steel plants, cement plants, power plants, shipyards, railways, sugar mills, and civil testing laboratories. Common applications include heavy machinery lifting, equipment alignment, press operations, structural load testing, bearing pressing, girder lifting, and general maintenance tasks requiring controlled vertical force with automatic return.
Key details
| HSN Code | 84122100 |
| Country of Origin | India |
| Brand | Venus Hydraulics |
| Sold by | M/S. VENUS HYDRAULICS |
| Customizable | No |
| Unit | PIECE |
| Minimum order | 1 PIECE |
| Category | Pumps, Hydraulics & Fluid Control > Hydraulic Cylinders & Actuators > Industrial Hydraulic Cylinders |
Specifications
| Capacity Range | 5 to 400 Ton |
| Stroke Range | 8 to 300 mm |
| Action Type | Single Acting |
| Return Mechanism | Spring Assisted |
| Maximum Operating Pressure | 700 kg/cm² |
| Ram Type | Plain or Threaded (series dependent) |
| Saddle Type | Plain (standard) |
| Body Material | Steel |
| Cylinder OD Range | 60 to 350 mm |
| Bore Diameter Range | 32 to 240 mm |
| Closed Height Range | 35 to 585 mm |
| Weight Range | 0.6 to 396 kg |
