Industrial Weld-On Hinges (Elesa+Ganter GN 128-200-STS equivalent)
Medium urgencyPosted 2 months ago
Requirement summary
- Delivery to
- Metoda, Rajkot
Description

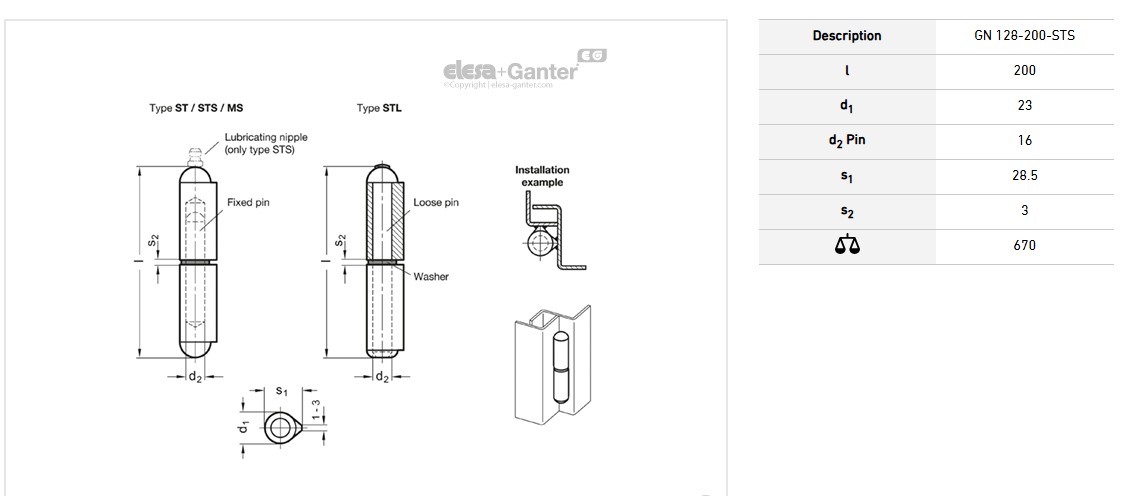

We are seeking manufacturing partners capable of producing heavy-duty industrial weld-on hinges equivalent to the Elesa+Ganter GN 128-200-STS specification. The following technical requirements must be met: Hinge Type: Weld-on hinge, Type STS with an integrated lubricating nipple.
Specifications
| Total Length (l) | 200 mm Millimetre |
| Hinge diameter (d1) | 23 mm Millimetre |
| Pin diameter (d2) | 16 mm Millimetre |
| Total width with welding feature (s1) | 28.5 mm Millimetre |
| Washer/Gap Thickeness (s2) | 3 mm Millimetre |
| weight | 670 gg Grams |
Buyer-defined fields
| Material Standard | Plain steel |
Attachments
